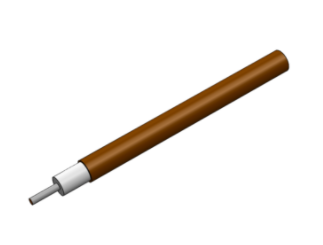

Center Conductor Diameter

0.0080 in

Dielectric Diameter

0.0240 in

Outer Conductor Diameter

0.0310 in

MATERIALS

Center Conductor Material

SPCW

Dielectric Material

LD PTFE

Outer Conductor Material

Copper

RoHS Compliant

Yes

MECHANICAL CHARACTERISTICS

Minimum Temperature

?55 °C

Maximum Temperature

+250 °C

Inside Bend Radius (Minimum)

0.125 in

Weight

0.16 lbs per 100 ft

ELECTRICAL CHARACTERISTICS

Nominal Impedance

50.0 ?

Nominal Impedance Margin

±2.0 ?

Velocity of Propagation

76.50%

Shielding Effectiveness

>165 db

Voltage Withstanding

2000 VRMS @ 60 Hz

Continuous Working Voltage

800 VRMS max

Maximum Operating Frequency

175 GHz

Attenuation

FREQUENCY

DB / 100 FT TYPICAL

0.5 GHz

32.4 db

1.0 GHz

45.9 db

5.0 GHz

103.2 db

10.0 GHz

146.5 db

18.0 GHz

197.3 db

26.5 GHz

240.3 db

40.0 GHz

296.6 db

50.0 GHz

332.5 db

65.0 GHz

380.6 db

90.0 GHz

450.3 db

Power

FREQUENCY

WATTS CW @ 20 °C (MAX)

0.5 GHz

60 W

1.0 GHz

43 W

5.0 GHz

19 W

10.0 GHz

14 W

18.0 GHz

10 W

26.5 GHz

8 W

40.0 GHz

7 W

50.0 GHz

6 W

65.0 GHz

5 W

90.0 GHz

4 W
