- 產品詳情

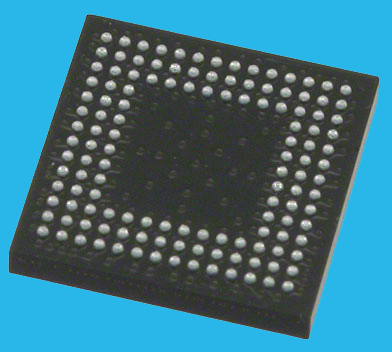

MachXO系列：
MachXO經過優化，可滿足傳統上由cpld和低容量fpga解決的應用需求:粘合邏輯、總線橋接、總線接口、上電控制和控制邏輯。這些器件在單個芯片上匯集了CPLD和FPGA器件的最佳特性。
MachXO系列選型指南
| Device | LCMXO256 | LCMXO640 | LCMXO1200 | LCMXO2280 |
| LUTs | 256 | 640 | 1200 | 2280 |
| Dist.RAM (Kbits | 2.0 | 6.1 | 6.4 | 7.7 |
| EBR SRAM (Kbits | 0 | 0 | 9.2 | 27.6 |
| Number of EBR SRAM Blocks (9 Kbits | 0 | 0 | 1 | 3 |
| Voc Voltage | 1.2/1.8/2.5/3.3V | 1.2/1.8/2.5/3.3 V | 1.2/1.8/2.5/3.3V | 1.2/1.8/2.5/3.3V |
| Number of PLLs | 0 | 0 | 1 | 2 |
| Max.I/0 | 78 | 159 | 211 | 271 |
| Packages | ||||
| 100-pin TQFP (14x14 mm | 78 | 74 | 73 | 73 |
| 144-pin TQFP (20x20 mm) | 113 | 113 | 113 | |
| 100-ball csBGA (8x8 mm) | 78 | 74 | ||
| 132-ball csBGA (8x8 mm | 101 | 101 | 101 | |
| 256-ball caBGA (14x14 mm | 159 | 211 | 211 | |
| 256-ball ftBGA (17x17 mm) | 159 | 211 | 211 | |
| 324-ball ftBGA (19x19 mm) | 271 | |||
訂購信息：
| Part Number | LUTs | Supply Voltage | l/Os | Grade | Package | Pins | Temp |
| LCMXO256C-3T1001 | 256 | 1.8V/2.5V/3.3V | 78 | -3 | TOFP | 100 | IND |
| LCMXO256C-4T1001 | 256 | 1.8V/2.5V/3.3 V | 78 | -4 | TQFP | 100 | IND |
| LCMXO256C-3M100 | 256 | 1.8V/2.5V/3.3V | 78 | -3 | CSBGA | 100 | IND |
| LCMXO256C-4M100 | 256 | 1.8V/2.5V/3.3V | 78 | -4 | CsBGA | 100 | IND |
| LCMXO640C-3T1001 | 640 | 1.8V/2.5V/3.3V | 74 | -3 | TQFP | 100 | IND |
| LCMXO640C-4T1001 | 640 | 1.8V/2.5V/3.3V | 74 | -4 | TQFP | 100 | IND |
| LCMXO640C-3M100 | 640 | 1.8V/2.5V/3.3V | 74 | -3 | CSBGA | 100 | IND |
| LCMXO640C-4M100 | 640 | 1.8V/2.5V/3.3V | 74 | -4 | CsBGA | 100 | IND |
| LCMXO640C-3T1441 | 640 | 1.8V/2.5V/3.3 V | 113 | -3 | TQFP | 144 | IND |
| LCMXO640C-4T1441 | 640 | 1.8V/2.5V/3.3 V | 113 | -4 | TQFP | 144 | IND |
| LCMXO640C-3M132 | 640 | 1.8V/2.5V/3.3V | 101 | -3 | CSBGA | 132 | IND |
| LCMXO640C-4M132 | 640 | 1.8V/2.5V/3.3V | 101 | -4 | CsBGA | 132 | IND |
| LCMXO640C-38256I | 640 | 1.8V/2.5V/3.3V | 159 | -3 | caBGA | 256 | IND |
| LCMXO640C-48256I | 640 | 1.8V/2.5V/3.3V | 159 | -4 | caBGA | 256 | IND |
| LCMX0640C-3FT256 | 640 | 1.8V/2.5V/3.3V | 159 | -3 | ftBGA | 256 | ND |
| LCMXO640C-4FT256 | 640 | 1.8V/2.5V/3.3V | 159 | -4 | ftBGA | 256 | IND |
| LCMXO1200C-3T1001 | 1200 | 1.8V/2.5V/3.3V | 73 | -3 | TOFP | 100 | IND |
| LCMXO1200C-4T1001 | 1200 | 1.8V/2.5V/3.3 V | 73 | -4 | TQFP | 100 | IND |
| LCMXO1200C-3T144I | 1200 | 1.8V/2.5V/3.3V | 113 | -3 | TQFP | 144 | IND |
| LCMXO1200C-4T1441 | 1200 | 1.8V/2.5V/3.3 V | 113 | -4 | TQFP | 144 | IND |
| LCMXO1200C-3M132 | 1200 | 1.8V/2.5V/3.3V | 101 | -3 | CSBGA | 132 | IND |
| LCMXO1200C-4M132 | 1200 | 1.8V/2.5V/3.3 V | 101 | -4 | CSBGA | 132 | IND |
| LCMXO1200C-3B256I | 1200 | 1.8V/2.5V/3.3V | 211 | -3 | caBGA | 256 | IND |
| Part Number | LUTs | Supply Voltage | l/Os | Grade | Package | Pins | Temp |
| LCMXO1200C-4B256I | 1200 | 1.8V/2.5V/3.3V | 211 | -4 | caBGA | 256 | IND |
| LCMXO1200C-3FT256 | 1200 | 1.8V/2.5V/3.3V | 211 | 3 | ftBGA | 256 | IND |
| LCMXO1200C-4FT256I | 1200 | 1.8V/2.5V/3.3V | 211 | -4 | ftBGA | 256 | IND |
| LCMXO2280C-3T100 | 2280 | 1.8V/2.5V/3.3V | 73 | 3 | TQFP | 100 | IND |
| LCMXO2280C-4T100 | 2280 | 1.8V/2.5V/3.3V | 73 | -4 | TQFP | 100 | IND |
| LCMXO2280C-3T1441 | 2280 | 1.8V/2.5V/3.3V | 113 | -3 | TQFP | 144 | IND |
| LCMXO2280C-4T1441 | 2280 | 1.8V/2.5V/3.3V | 113 | -4 | TQFP | 144 | IND |
| LCMXO2280C-3M1321 | 2280 | 1.8V/2.5V/3.3V | 101 | -3 | CsBGA | 132 | IND |
| LCMXO2280C-4M1321 | 2280 | 1.8V/2.5V/3.3V | 101 | -4 | csBGA | 132 | IND |
| LCMXO2280C-38256I | 2280 | 1.8V/2.5V/3.3V | 211 | 3 | caBGA | 256 | IND |
| LCMXO2280C-48256I | 2280 | 1.8V/2.5V/3.3V | 211 | -4 | caBGA | 256 | IND |
| LCMXO2280C-3FT256I | 2280 | 1.8V/2.5V/3.3V | 211 | 3 | ftBGA | 256 | IND |
| LCMXO2280C-4FT2561 | 2280 | 1.8V/2.5v/3.3V | 211 | 4 | ftBGA | 256 | IND |
| LCMXO2280C-3FT324I | 2280 | 1.8V/2.5V/3.3V | 271 | 3 | ftBGA | 324 | IND |
| LCMXO2280C-4FT324I | 2280 | 1.8V/2.5V/3.3V | 271 | -4 | ftBGA | 324 | IND |
| LCMXO256E-3T100I | 256 | 1.2V | 78 | 3 | TOFP | 100 | IND |
| LCMXO256E-4T100I | 256 | 1.2 V | 78 | -4 | TQFP | 100 | IND |
| LCMXO256E-3M100I | 256 | 1.2V | 78 | 3 | csBGA | 100 | IND |
| LCMXO256E-4M100I | 256 | 1.2 V | 78 | 4 | csBGA | 100 | IND |
| LCMXO640E-3T100I | 640 | 1.2 V | 74 | 3 | TOFP | 100 | IND |
| LCMXO640E-4T100 | 640 | 1.2V | 74 | -4 | TQFP | 100 | IND |
| LCMXO640E-3M100I | 640 | 1.2 V | 74 | 3 | csBGA | 100 | IND |
| LCMXO640E-4M100I | 640 | 1.2V | 74 | -4 | csBGA | 100 | IND |
| LCMXO640E-3T144I | 640 | 1.2 V | 113 | 3 | TQFP | 144 | IND |
| LCMXO640E-4T144I | 640 | 1.2 V | 113 | 4 | TQFP | 144 | IND |
| LCMXO640E-3M1321 | 640 | 1.2V | 101 | -3 | csBGA | 132 | IND |
| LCMXO640E-4M1321 | 640 | 1.2V | 101 | -4 | csBGA | 132 | IND |
| LCMXO640E-3B256I | 640 | 1.2 V | 159 | 3 | caBGA | 256 | IND |
| LCMXO640E-4B256I | 640 | 1.2V | 159 | -4 | caBGA | 256 | IND |
| LCMXO640E-3FT256I | 640 | 1.2V | 159 | 3 | ftBGA | 256 | IND |
| LCMXO640E-4FT256I | 640 | 1.2 V | 159 | 4 | ftBGA | 256 | IND |
| LCMXO1200E-3T100I | 1200 | 1.2V | 73 | -3 | TQFP | 100 | IND |
| LCMXO1200E-4T100I | 1200 | 1.2V | 73 | -4 | TOFP | 100 | IND |
| LCMXO1200E-3T144I | 1200 | 1.2 V | 113 | -3 | TQFP | 144 | IND |
| LCMXO1200E-4T144I | 1200 | 1.2V | 113 | -4 | TQFP | 144 | IND |
| LCMXO1200E-3M13.21 | 1200 | 1.2 V | 101 | 3 | csBGA | 132 | IND |
| LCMXO1200E-4M13.21 | 1200 | 1.2 V | 101 | -4 | csBGA | 132 | IND |
| LCMXO1200E-3B256I | 1200 | 1.2V | 211 | 3 | caBGA | 256 | IND |
| LCMXO1200E-4B256I | 1200 | 1.2 V | 211 | -4 | caBGA | 256 | IND |
| LCMXO1200E-3FT256I | 1200 | 1.2V | 211 | -3 | ftBGA | 256 | IND |
| LCMXO1200E-4FT256 | 1200 | 1.2 V | 211 | -4 | ftBGA | 256 | IND |
| LCMXO2280E-3T100I | 2280 | 1.2 V | 73 | -3 | TQFP | 100 | IND |
| LCMXO2280E-4T100I | 2280 | 1.2V | 73 | -4 | TQFP | 100 | IND |
| LCMXO2280E-3T1441 | 2280 | 1.2 V | 113 | 3 | TQFP | 144 | IND |
| LCMXO2280E-4T1441 | 2280 | 1.2 V | 113 | -4 | TQFP | 144 | IND |
| LCMXO2280E-3M13.21 | 2280 | 1.2 V | 101 | 3 | csBGA | 132 | IND |
| LCMXO2280E-4M13.21 | 2280 | 1.2V | 101 | -4 | csBGA | 132 | IND |
| LCMXO2280E-3B256I | 2280 | 1.2 V | 211 | 3 | caBGA | 256 | IND |
| Part Number | LUTs | Supply Voltage | l/Os | Grade | Package | Pins | Temp |
| LCMXO2280E-4B2561 | 2280 | 1.2V | 211 | 4 | caBGA | 256 | IND |
| LCMXO2280E-3FT256 | 2280 | 1.2V | 211 | 3 | ftBGA | 256 | IND |
| LCMXO2280E-4FT256 | 2280 | 1.2V | 211 | 4 | ftBGA | 256 | IND |
| LCMXO2280E-3FT324 | 2280 | 1.2V | 271 | 3 | ftBGA | 324 | IND |
| LCMXO2280E-4FT324 | 2280 | 1.2V | 271 | 4 | ftBGA | 324 | IND |
| Part Number | LUTs | Supply Voltage | l/Os | Grade | Package | Pin | Temp. |
| LCMXO256C-3TN100I | 256 | 1.8V/2.5V/3.3V | 78 | -3 | Lead-Free TQFP | 100 | IND |
| LCMXO256C-4TN100I | 256 | 1.8V/2.5V/3.3V | 78 | -4 | Lead-Free TQFP | 100 | IND |
| LCMXO256C-3MN100I | 256 | 1.8V/2.5V/3.3V | 78 | 3 | ead-Free csBGA | 100 | IND |
| LCMXO256C-4MN100I | 256 | 1.8V/2.5V/3.3V | 78 | -4 | ead-Free csBGA | 100 | IND |
| LCMXO640C-3TN100I | 640 | 1.8V/2.5V/3.3 V | 74 | -3 | Lead-Free TOFP | 100 | IND |
| LCMXO640C-4TN100I | 640 | 1.8V/2.5V/3.3V | 74 | -4 | Lead-Free TQFP | 100 | IND |
| LCMXO640C-3MN100I | 640 | 1.8V/2.5V/3.3 V | 74 | -3 | Lead-Free csBGA | 100 | IND |
| LCMXO640C-4MN100I | 640 | 1.8V/2.5V/3.3 V | 74 | -4 | Lead-Free csBGA | 100 | IND |
| LCMXO640C-3TN144I | 640 | 1.8V/2.5V/3.3 V | 113 | -3 | Lead-Free TOFP | 144 | IND |
| LCMXO640C-4TN144 | 640 | 1.8V/2.5V/3.3V | 113 | -4 | Lead-Free TQFP | 144 | IND |
| LCMXO640C-3MN1321 | 640 | 1.8V/2.5V/3.3V | 101 | -3 | Lead-Free csBGA | 132 | IND |
| LCMXO640C-4MN1321 | 640 | 1.8V/2.5V/3.3V | 101 | -4 | Lead-Free csBGA | 132 | IND |
| LCMXO640C-3BN256I | 640 | 1.8V/2.5V/3.3V | 159 | -3 | Lead-Free caBGA | 256 | IND |
| LCMXO640C-4BN256I | 640 | 1.8V/2.5V/3.3V | 159 | -4 | Lead-Free caBGA | 256 | IND |
| LCMXO640C-3FTN256I | 640 | 1.8V/2.5V/3.3V | 159 | -3 | Lead-Free ftBGA | 256 | ND |
| LCMXO640C-4FTN256I | 640 | 1.8V/2.5V/3.3V | 159 | 4 | Lead-Free ftBGA | 256 | IND |
| LCMXO1200C-3TN100 | 1200 | 1.8V/2.5V/3.3 V | 73 | 3 | Lead-Free TQFP | 100 | IND |
| LCMXO1200C-4TN100I | 120 | 1.8V/2.5V/3.3V | 73 | -4 | Lead-Free TQFP | 100 | ND |
| LCMXO1200C-3TN144I | 1200 | 1.8V/2.5V/3.3 V | 113 | -3 | Lead-Free TQFP | 144 | IND |
| LCMXO1200C-4TN144I | 1200 | 1.8V/2.5V/3.3 V | 113 | -4 | Lead-Free TQFP | 144 | IND |
| LCMXO1200C-3MN1321 | 120 | 1.8V/2.5V/3.3V | 101 | -3 | Lead-Free csBGA | 132 | IND |
| LCMXO1200C-4MN1321 | 120 | 1.8V/2.5V/3.3 V | 101 | -4 | Lead-Free csBGA | 132 | IND |
| LCMXO1200C-3BN256I | 1200 | 1.8V/2.5V/3.3V | 211 | 3 | Lead-Free caBGA | 256 | IND |
| LCMXO1200C-4BN256I | 1200 | 1.8V/2.5V/3.3 V | 211 | -4 | Lead-Free caBGA | 256 | IND |
| LCMXO1200C-3FTN256I | 1200 | 1.8V/2.5V/3.3V | 211 | 3 | Lead-Free ftBGA | 256 | IND |
| LCMXO1200C-4FTN256I | 1200 | 1.8V/2.5V/3.3V | 211 | -4 | Lead-Free ftBGA | 256 | IND |
| LCMXO2280C-3TN100I | 2280 | 1.8V/2.5V/3.3 V | 73 | 3 | Lead-Free TOFP | 100 | IND |
| LCMXO2280C-4TN100I | 2280 | 1.8V/2.5V/3.3V | 73 | 4 | Lead-Free TQFP | 100 | IND |
| LCMXO2280C-3TN144I | 228 | 1.8V/2.5V/3.3V | 113 | -3 | Lead-Free TOFP | 144 | IND |
| LCMXO2280C-4TN1441 | 228 | 1.8V/2.5V/3.3V | 113 | -4 | Lead-Free TQFP | 144 | IND |
| LCMXO2280C-3MN1321 | 2280 | 1.8V/2.5V/3.3V | 101 | -3 | Lead-Free csBGA | 132 | IND |
| LCMXO2280C-4MN132 | 228 | 1.8V/2.5V/3.3V | 101 | -4 | Lead-Free csBGA | 132 | IND |
| LCMXO2280C-3BN256I | 228 | 1.8V/2.5V/3.3V | 211 | -3 | Lead-Free caBGA | 256 | IND |
| LCMXO2280C-4BN256I | 2280 | 1.8V/2.5V/3.3V | 211 | -4 | Lead-Free caBGA | 256 | IND |
| LCMXO2280C-3FTN256I | 2280 | 1.8V/2.5V/3.3V | 211 | -3 | Lead-Free ftBGA | 256 | IND |
| LCMXO2280C-4FTN256I | 2280 | 1.8V/2.5V/3.3V | 211 | -4 | Lead-Free ftBGA | 256 | IND |
| LCMXO2280C-3FTN3241 | 2280 | 1.8V/2.5V/3.3V | 271 | -3 | Lead-Free ftBGA | 324 | IND |
| LCMXO2280C-4FTN3241 | 2280 | 1.8V/2.5V/3.3V | 271 | 4 | Lead-Free ftBGA | 324 | IND |
| LCMXO256E-3TN100 | 256 | 1.2V | 78 | -3 | Lead-Free TOFP | 100 | ND |
| LCMXO256E-4TN100 | 256 | 1.2V | 78 | -4 | Lead-Free TOFP | 100 | ND |
| LCMXO256E-3MN100I | 256 | 1.2V | 78 | -3 | Lead-Free csBGA | 100 | ND |
| LCMXO256E-4MN100I | 256 | 1.2V | 78 | -4 | Lead-Free csBGA | 100 | ND |
| LCMXO640E-3TN100 | 640 | 1.2V | 74 | -3 | Lead-Free TQFP | 100 | ND |
| LCMXO640E-4TN100 | 640 | 1.2V | 74 | -4 | Lead-Free TOFP | 100 | IND |
| LCMXO640E-3MN100I | 640 | 1.2V | 74 | 3 | Lead-Free csBGA | 100 | ND |
| LCMXO640E-4MN100I | 640 | 1.2V | 74 | -4 | Lead-Free csBGA | 100 | ND |
| Part Number | LUTs | Supply Voltage | l/Os | Grade | Package | Pins | Temp |
| LCMXO640E-3TN144I | 640 | 1.2 V | 113 | 3 | ead-Free TOFP | 144 | IND |
| LCMXO640E-4TN144I | 640 | 1.2 V | 113 | 4 | Lead-Free TOFP | 144 | IND |
| LCMXO640E-3MN132I | 640 | 1.2V | 101 | 3 | ead-Free csBGA | 132 | IND |
| LCMXO640E-4MN132I | 640 | 1.2 V | 101 | 4 | ead-Free csBGA | 132 | IND |
| LCMXO640E-3BN256 | 640 | 1.2V | 159 | 3 | ead-Free caBGA | 256 | IND |
| LCMXO640E-4BN256 | 640 | 1.2 V | 159 | 4 | Lead-Free caBGA | 256 | IND |
| LCMXO640E-3FTN256I | 640 | 1.2 V | 159 | -3 | Lead-Free ftBGA | 256 | IND |
| LCMXO640E-4FTN256 | 640 | 1.2 V | 159 | 4 | ead-Free ftBGA | 256 | IND |
| LCMXO1200E-3TN100 | 1200 | 1.2 V | 73 | 3 | Lead-Free TOFP | 100 | IND |
| LCMXO1200E-4TN100 | 1200 | 1.2V | 73 | 4 | ead-Free TOFP | 100 | IND |
| LCMXO1200E-3TN144I | 1200 | 1.2 V | 113 | 3 | ead-Free TOFP | 144 | IND |
| LCMXO1200E-4TN144I | 1200 | 1.2 V | 113 | 4 | ead-Free TOFP | 144 | IND |
| LCMXO1200E-3MN132 | 1200 | 1.2 V | 101 | 3 | ead-Free csBGA | 132 | IND |
| LCMXO1200E-4MN1321 | 1200 | 1.2 V | 101 | 4 | Lead-Free csBGA | 132 | IND |
| LCMXO1200E-3BN256I | 1200 | 1.2V | 211 | 3 | ead-Free caBGA | 256 | IND |
| LCMXO1200E-4BN256I | 1200 | 1.2 V | 211 | 4 | ead-Free caBGA | 256 | IND |
| LCMXO1200E-3FTN256 | 1200 | 1.2V | 211 | -3 | ead-Free ftBGA | 256 | IND |
| LCMXO1200E-4FTN256 | 1200 | 1.2 V | 211 | 4 | ead-Free ftBGA | 256 | IND |
| LCMXO2280E-3TN100 | 2280 | 1.2V | 73 | 3 | ead-Free TOFP | 100 | IND |
| LCMXO2280E-4TN100 | 228 | 1.2 V | 73 | 4 | ead-Free TOFP | 100 | IND |
| LCMXO2280E-3TN144I | 2280 | 1.2 V | 113 | 3 | Lead-Free TOFP | 144 | IND |
| LCMXO2280E-4TN144I | 2280 | 1.2V | 113 | 4 | ead-Free TOFP | 144 | IND |
| LCMXO2280E-3MN132 | 2280 | 1.2 V | 101 | 3 | Lead-Free csBGA | 132 | IND |
| LCMXO2280E-4MN132 | 2280 | 1.2 V | 101 | 4 | ead-Free csBGA | 132 | IND |
| LCMXO2280E-3BN256I | 2280 | 1.2 V | 211 | 3 | Lead-Free caBGA | 256 | IND |
| LCMXO2280E-4BN256I | 2280 | 1.2V | 211 | -4 | ead-Free caBGA | 256 | IND |
| LCMXO2280E-3FTN256 | 2280 | 1.2 V | 211 | 3 | ead-Free ftBGA | 256 | IND |
| LCMXO2280E-4FTN256 | 2280 | 1.2 V | 211 | 4 | Lead-Free ftBGA | 256 | IND |
| LCMXO2280E-3FTN324I | 2280 | 1.2V | 271 | 3 | Lead-Free ftBGA | 324 | IND |
| LCMXO2280E-4FTN324I | 2280 | 1.2 V | 271 | -4 | Lead-Free ftBGA | 324 | IND |
1.1. 特性
?非易失性，無限可重構
?即時啟動-在微秒內啟動
?單芯片，不需要外部配置內存
?出色的設計安全性，無比特流攔截
?在毫秒內重新配置基于SRAM的邏輯
SRAM和非易失性存儲器
通過JTAG端口可編程
?支持后臺編程的非易失性存儲器
?睡眠模式
?允許高達100倍的靜態電流減少
TransFR?Reconfiguration (TFR)
?在系統運行時進行現場邏輯更新
?高I/O到邏輯密度
?256至2280 lut4
?73至271 I/ o與廣泛的封裝選項
?支持密度遷移
?無鉛/符合RoHS標準的包裝
?嵌入式和分布式內存
?高達27.6 Kbits的systemm?嵌入式塊
內存
?高達7.7 Kbits的分布式RAM
?專用FIFO控制邏輯
?靈活的I/O緩沖
?可編程的sysIO?緩沖器支持廣泛
接口范圍:
lvcmos 3.3/2.5/1.8/1.5/1.2
?LVTTL
?一種總線標準
LVDS，總線LVDS, LVPECL, RSDS
?sysCLOCK?PLLs
?每個設備最多兩個模擬鎖相環
?時鐘乘法，除法和相移
?系統級支持
IEEE標準1149.1邊界掃描
?板載振蕩器
?設備運行3.3 V, 2.5 V, 1.8 V或1.2V電源
?符合IEEE 1532的系統編程
